L400 edition · Azure landing-zone design mapping · Recorded lab: October 2026 · Identifiers masked
Masked screenshot evidence
The full chronological screenshot record is retained. Read the caption: historical errors and progress are not current failures or completion evidence.
Solid-fill masks are permanently rasterized into fresh PNG files. They are not CSS overlays, blur, or removable layers. Click a screenshot to inspect its public redacted copy.

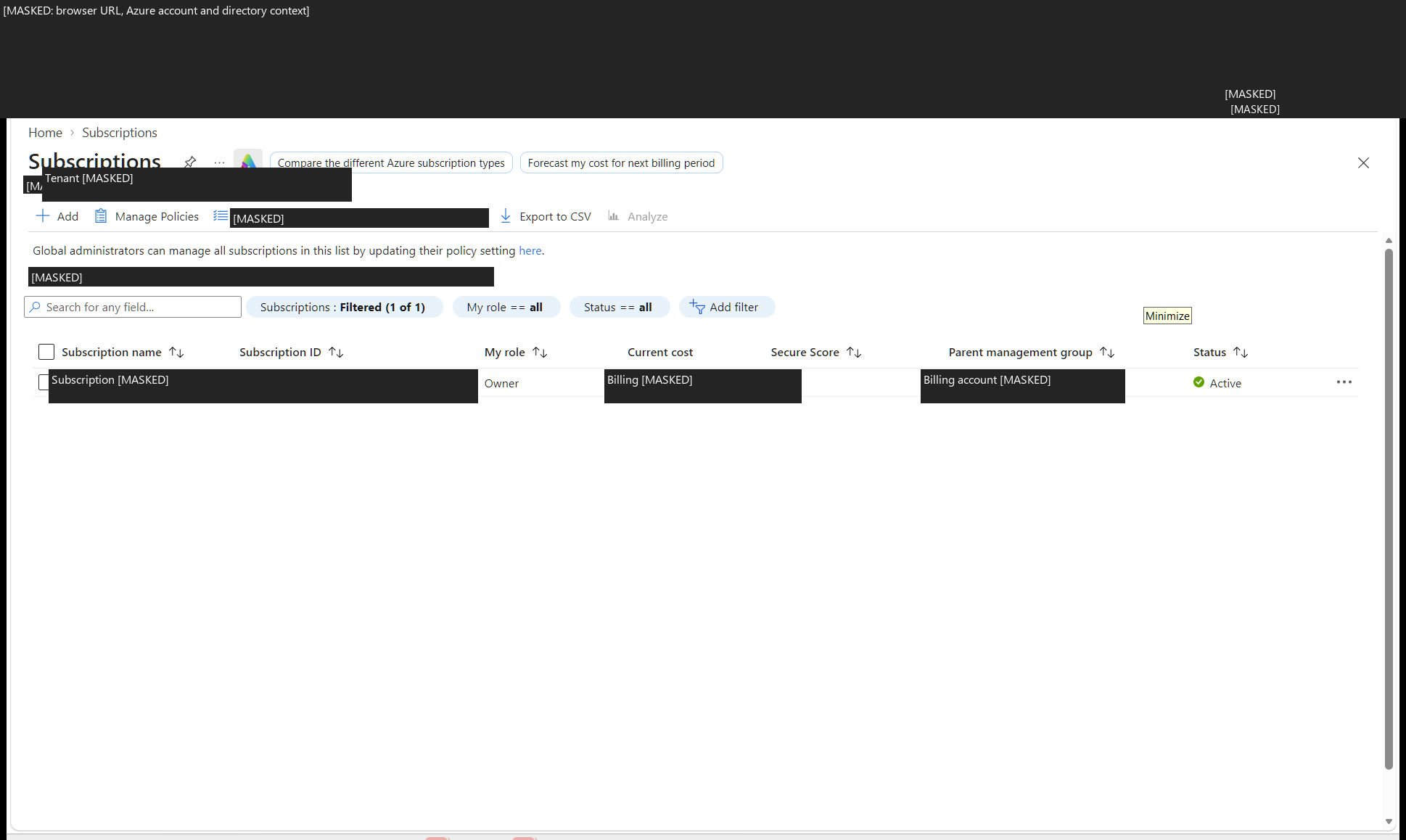

01. Account and subscription preflight
Original Azure account/subscription view. Account, tenant, subscription and billing values are masked; field context is retained. Original browser/account/identifier fields are masked in the image pixels; no unredacted image is included.

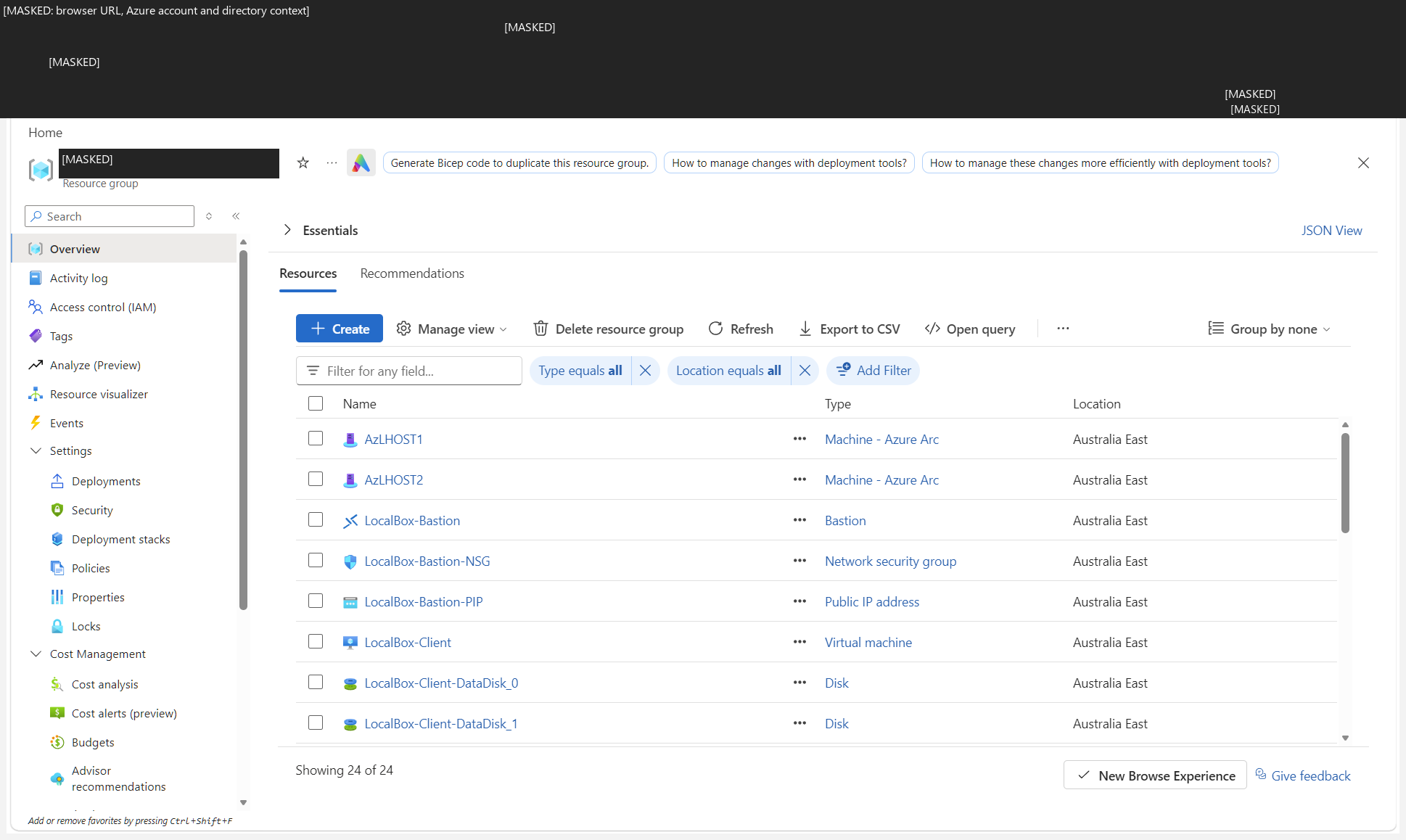

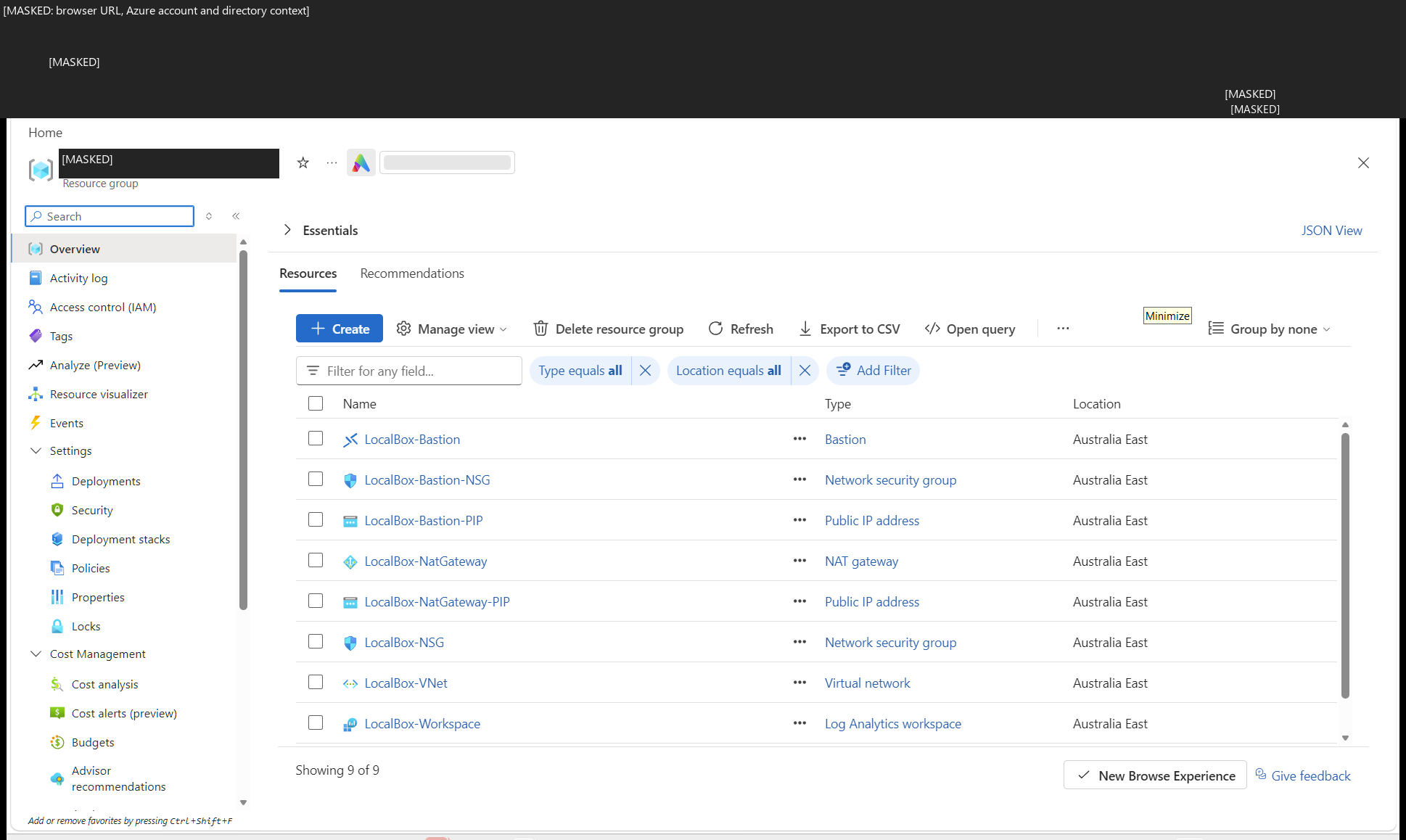

02. Outer lab resources
Initial resource-group inventory. Resource counts are a historical observation, not a current readiness claim. Original browser/account/identifier fields are masked in the image pixels; no unredacted image is included.

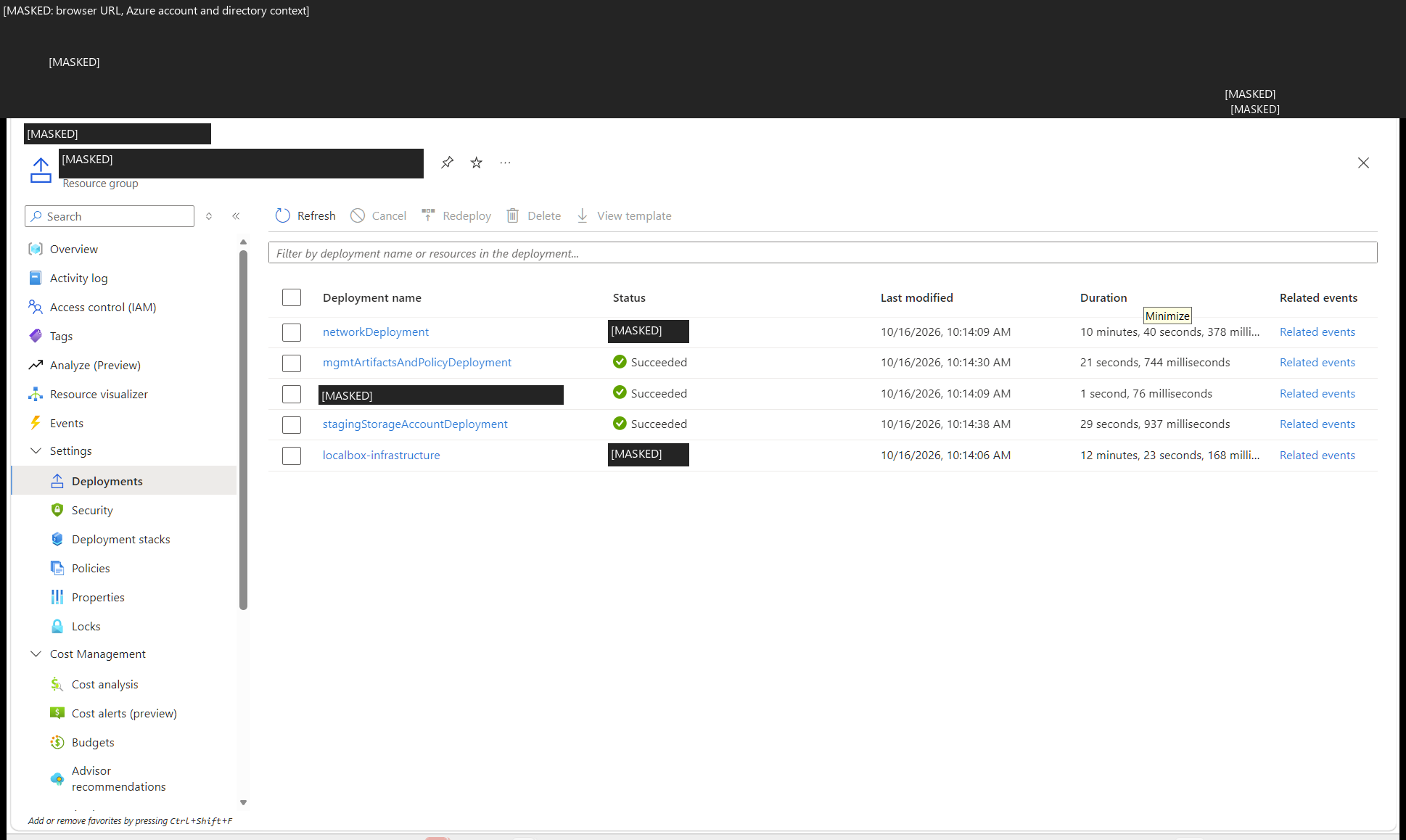

03. Infrastructure deploying

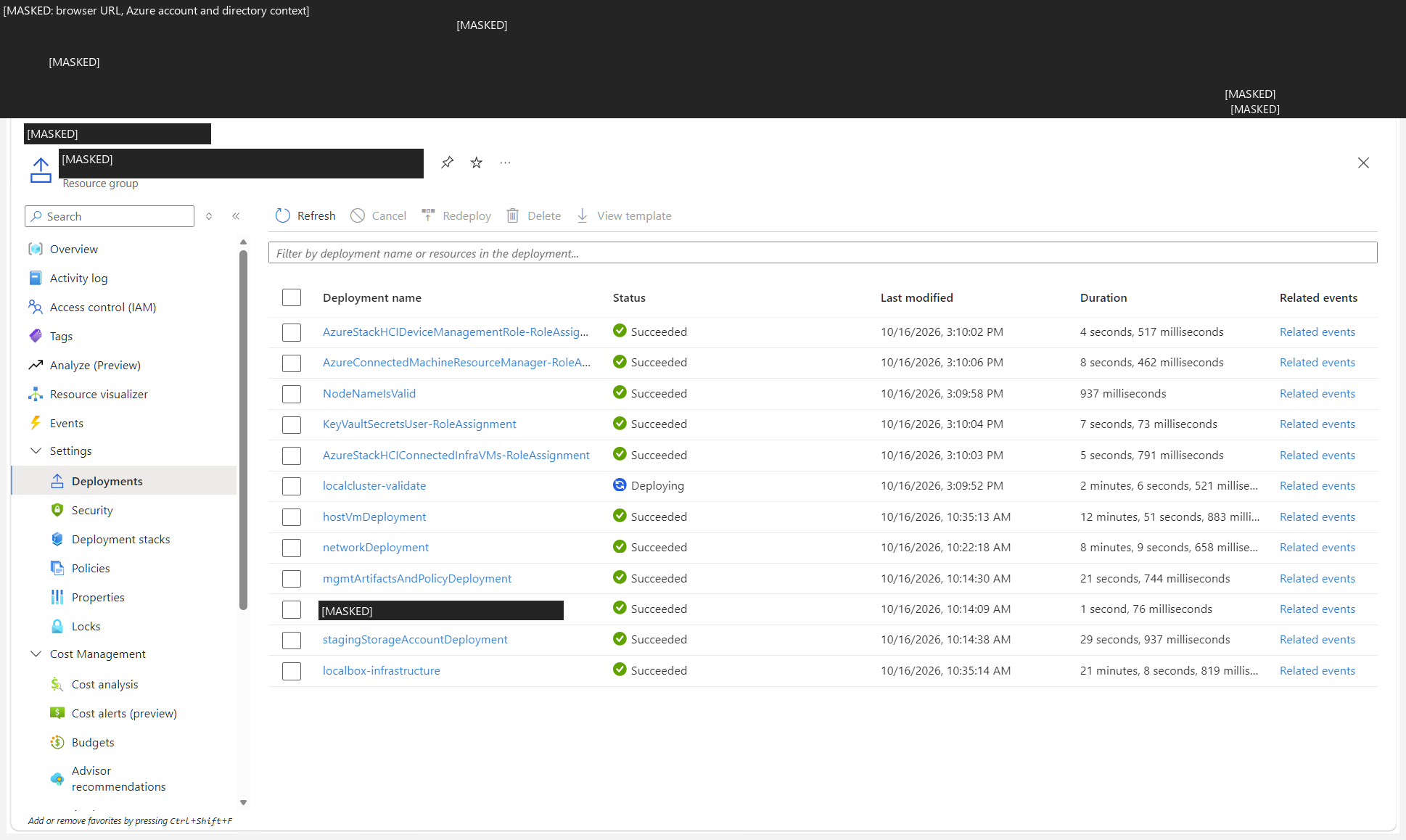

Historical ARM infrastructure operations. Deploying is not proof that nested Azure Local configuration has finished. Original browser/account/identifier fields are masked in the image pixels; no unredacted image is included.

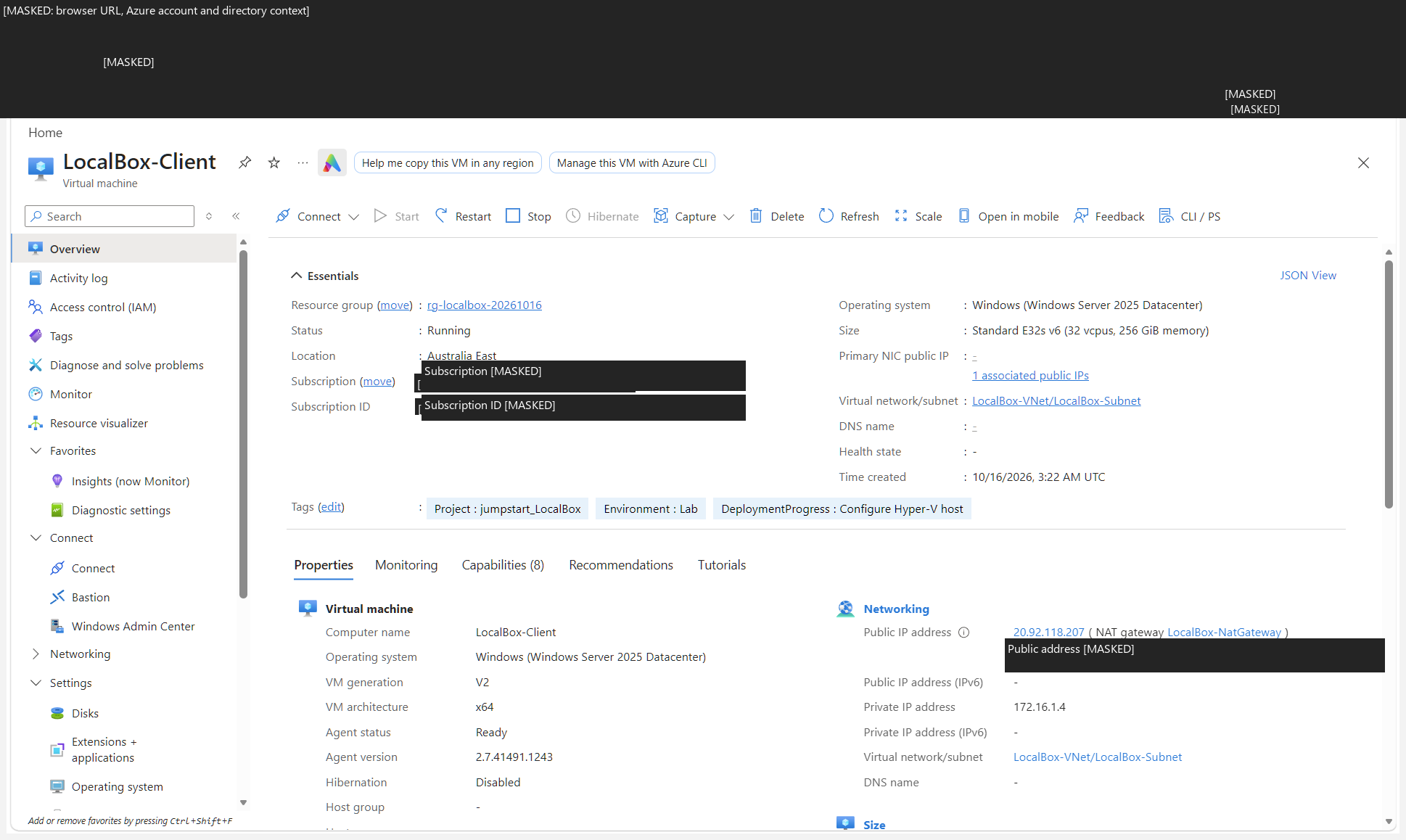

04. LocalBox-Client
The outer Azure VM, not one of the two nested Azure Local servers. Subscription and public address values are masked. Original browser/account/identifier fields are masked in the image pixels; no unredacted image is included.
05. Azure Local before onboarding

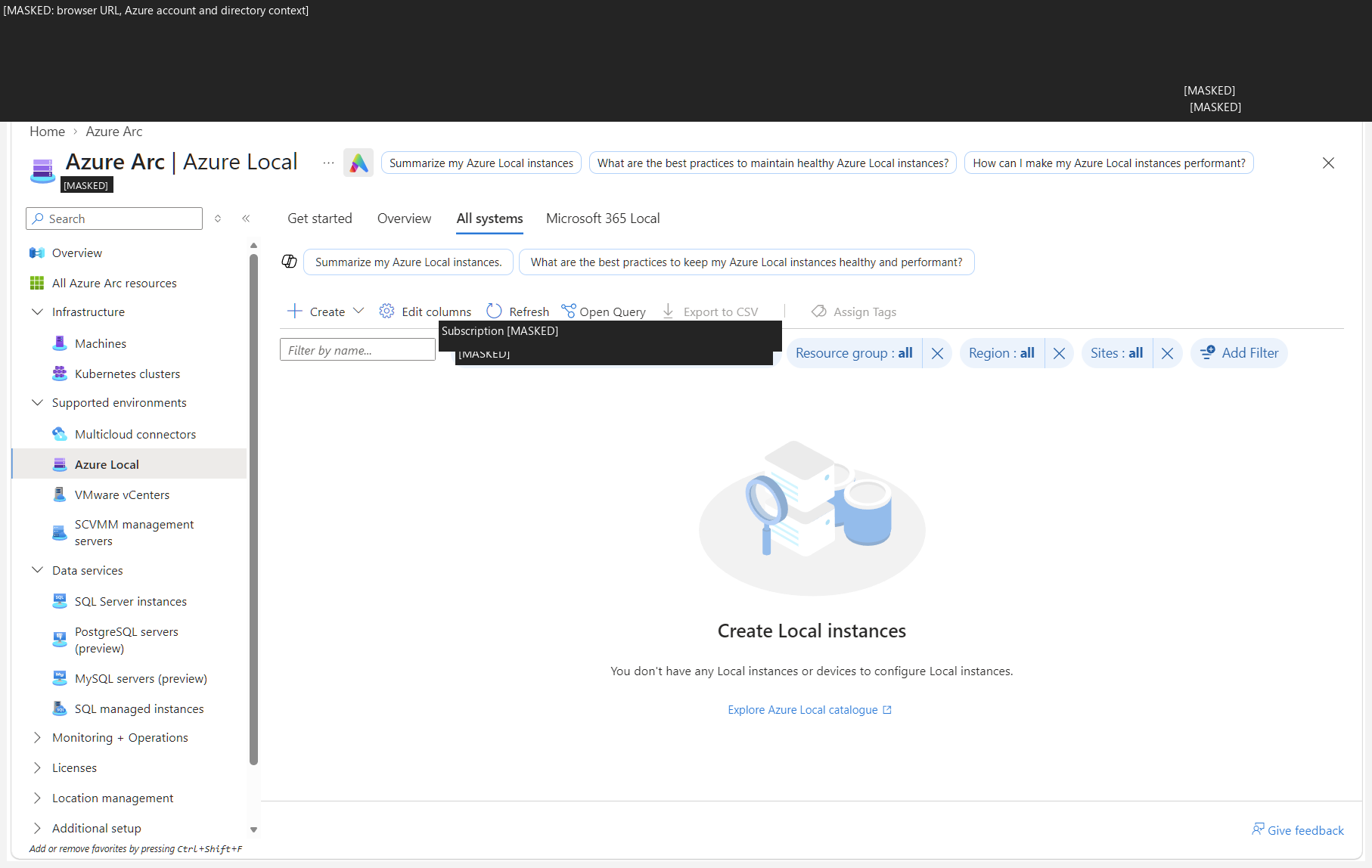

Historical empty Azure Local view before nested nodes were registered. It is not the final cluster state. Original browser/account/identifier fields are masked in the image pixels; no unredacted image is included.
06. Publisher image-access issue

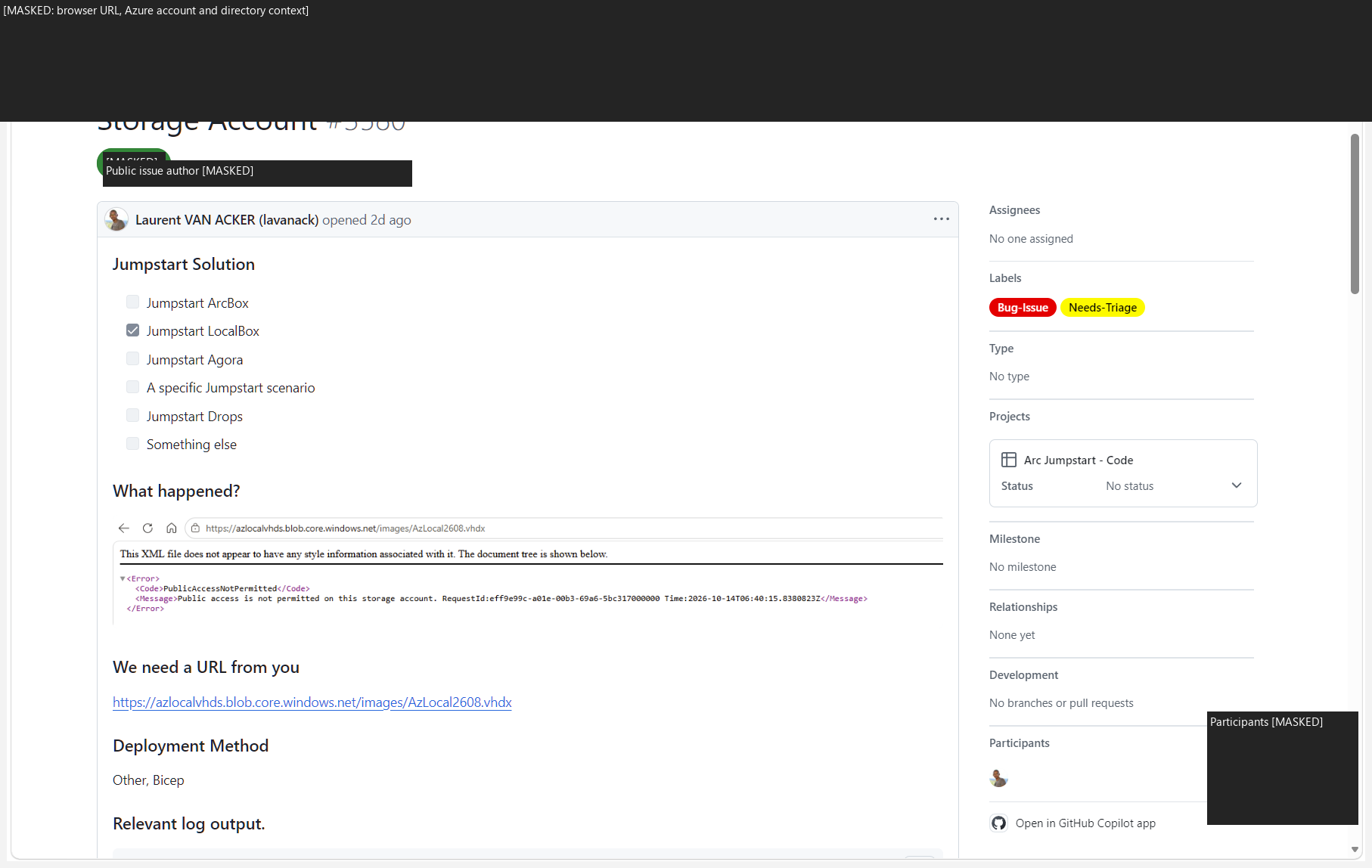

Historical public upstream issue documenting image-access failure. Public issue participant details are also masked. Original browser/account/identifier fields are masked in the image pixels; no unredacted image is included.

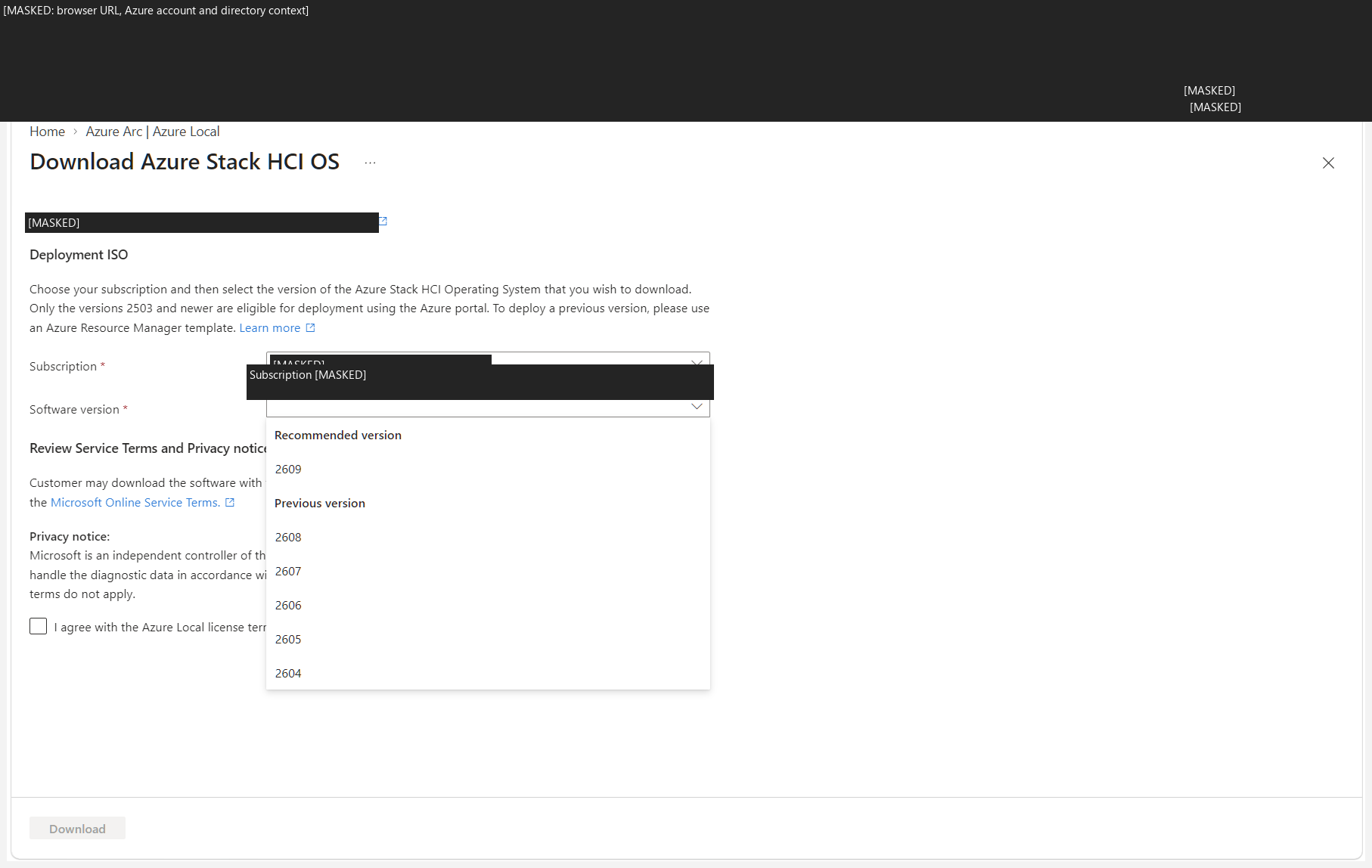

07. Official ISO route
Azure Local OS download interface. Subscription selection is masked. License/privacy acceptance is still required. Original browser/account/identifier fields are masked in the image pixels; no unredacted image is included.
08. Matching image version
Historical matching release selection. An acquired ISO is a recovery input, not deployment-success evidence. Original browser/account/identifier fields are masked in the image pixels; no unredacted image is included.
09. Arc nodes appear
The two nested servers appear as Arc resources. This is a separate gate from completed cluster deployment. Original browser/account/identifier fields are masked in the image pixels; no unredacted image is included.

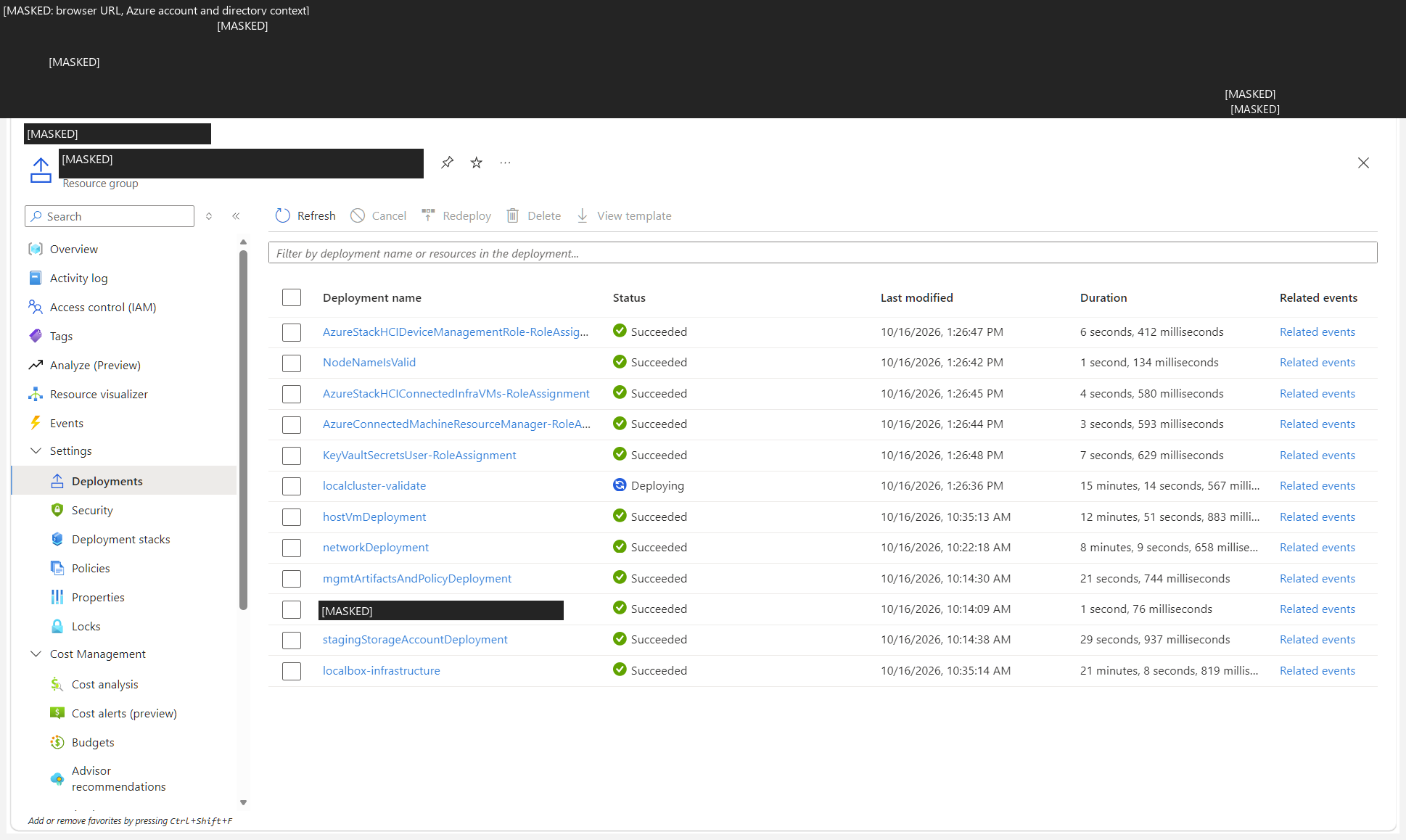

10. Cluster validation
Historical full validation deployment. Validate and Deploy are distinct phases. Original browser/account/identifier fields are masked in the image pixels; no unredacted image is included.
11. Historical NTP validation failure

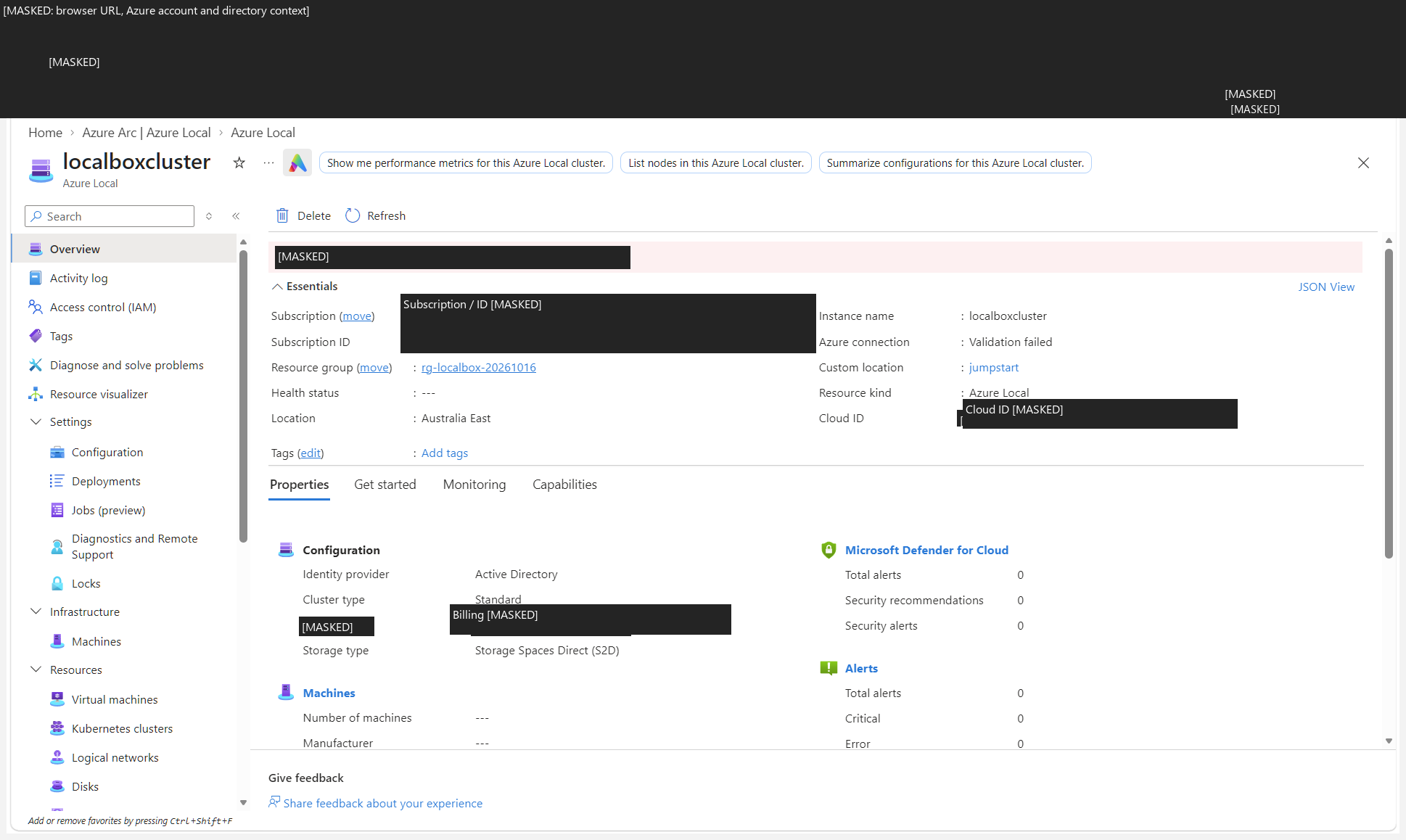

Original validation failure before a targeted time-source correction. Billing and identifiers are masked. Original browser/account/identifier fields are masked in the image pixels; no unredacted image is included.
12. Controlled revalidation
Historical validation retry after a pending servicing reboot was addressed. Not final completion evidence. Original browser/account/identifier fields are masked in the image pixels; no unredacted image is included.
13. Validated and deploying

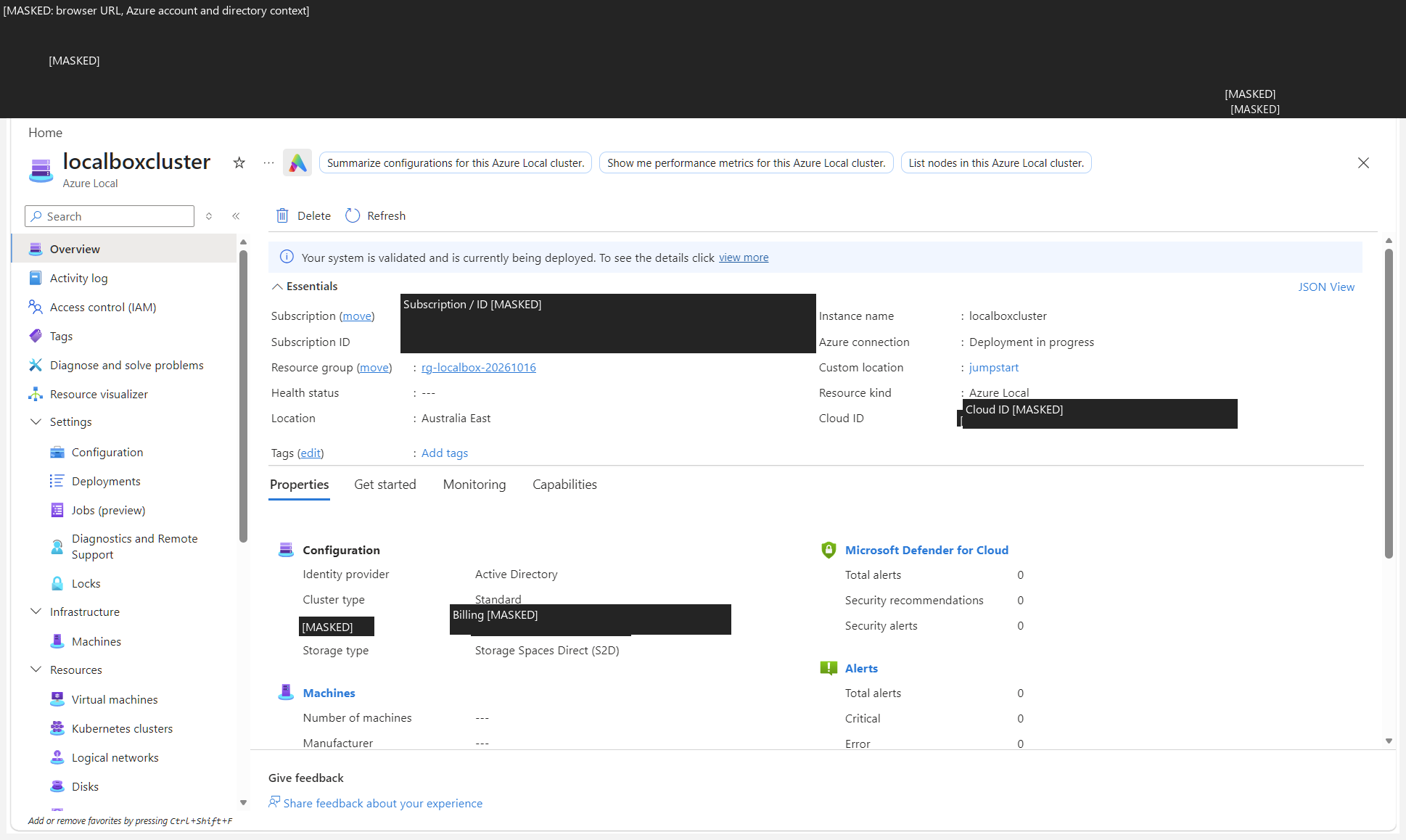

The blue banner records normal final-deployment progress after validation, not an error or completed deployment. Original browser/account/identifier fields are masked in the image pixels; no unredacted image is included.

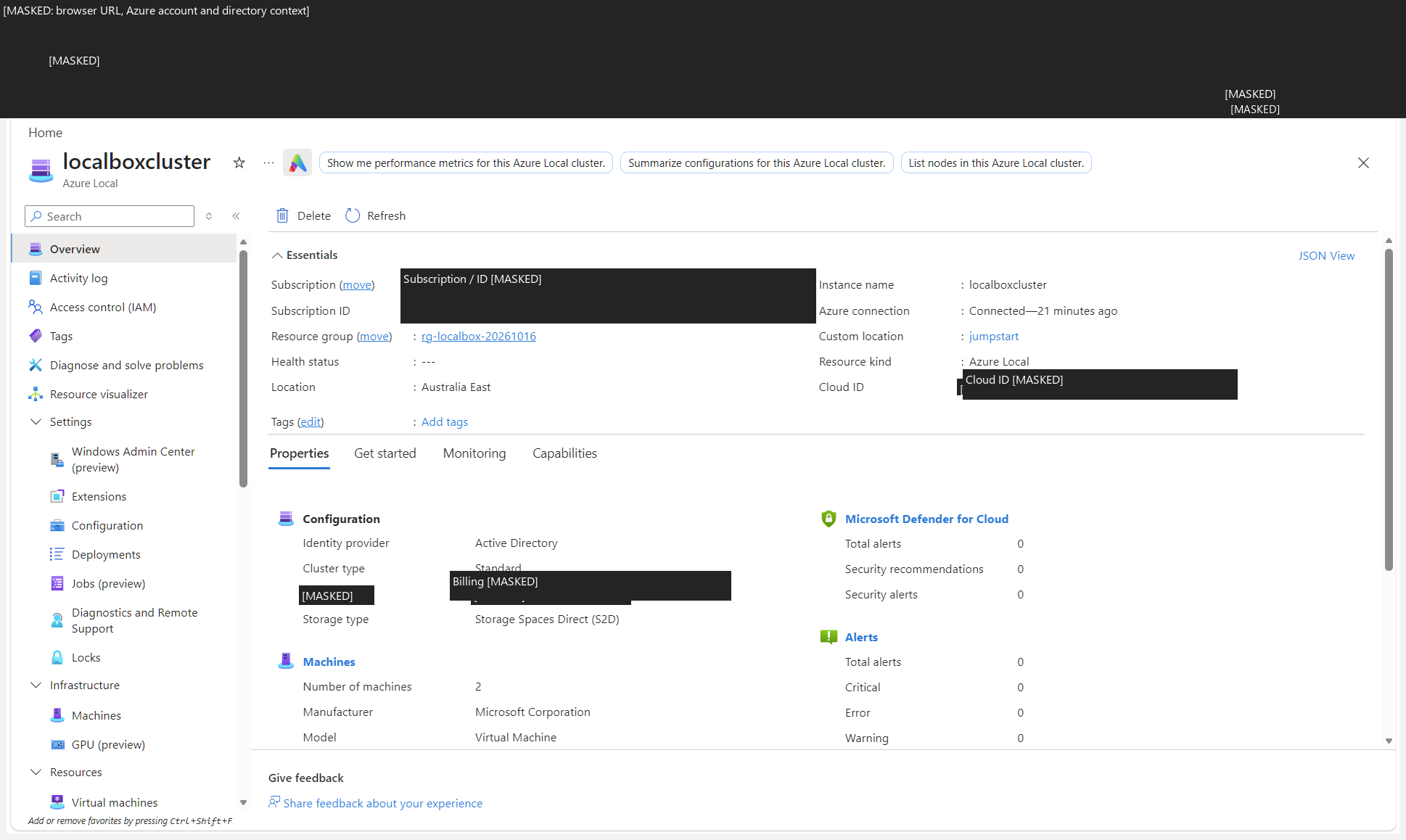

14. Cluster deployed
Recorded completed two-node cluster, Connected. Identity and billing values are masked; this is not a live status feed. Original browser/account/identifier fields are masked in the image pixels; no unredacted image is included.
16. Workload prerequisites card

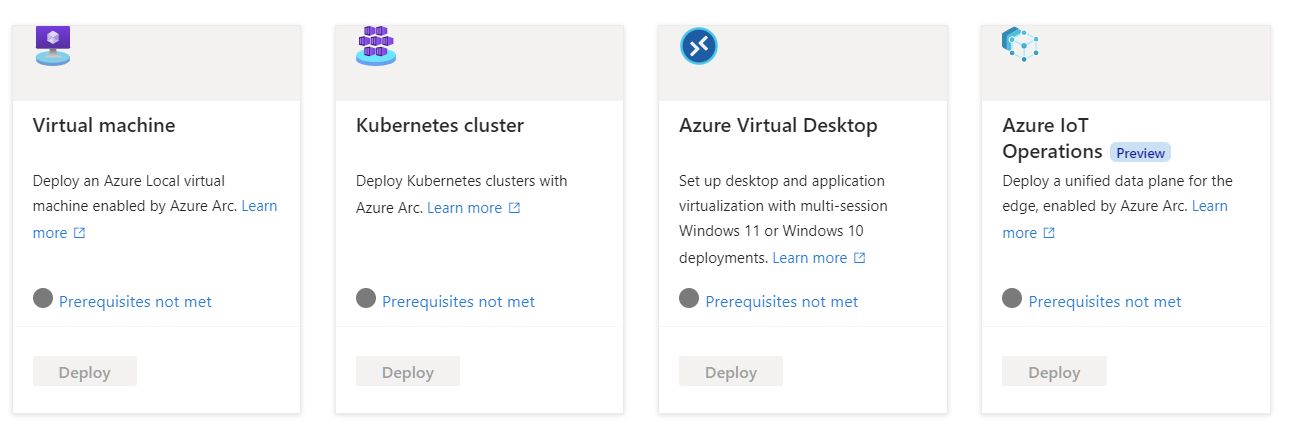

User-supplied original Get Started cards. Generic grey badges alone did not prove a failed Azure Local installation. Original browser/account/identifier fields are masked in the image pixels; no unredacted image is included.

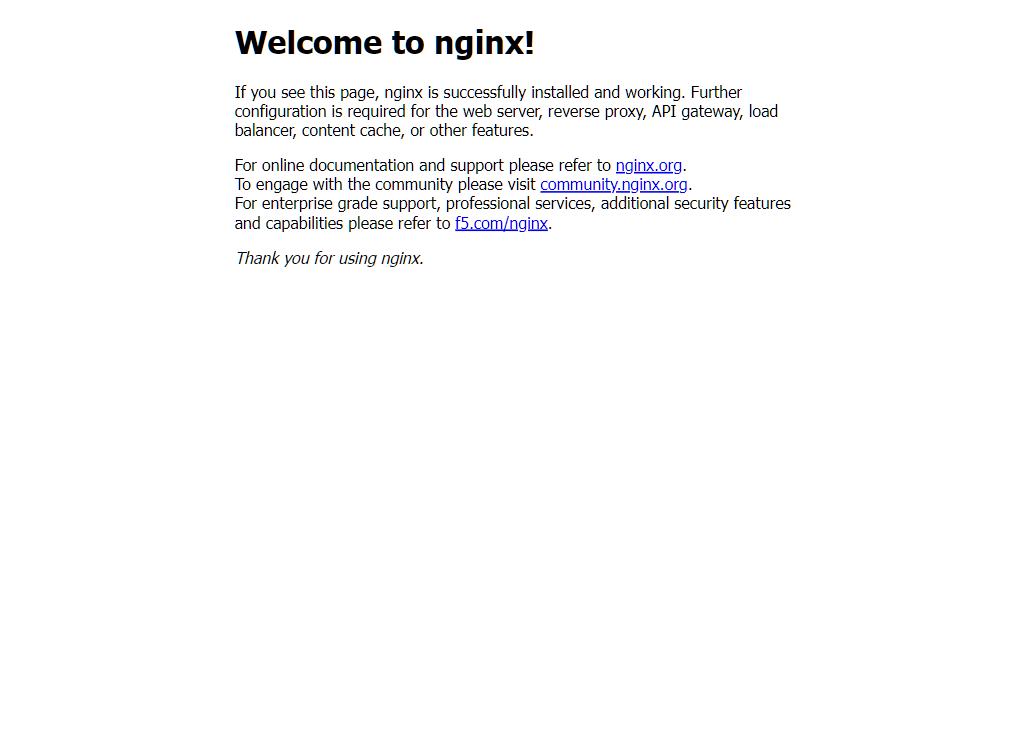

18. AKS NGINX page
Actual single-replica AKS NGINX page through private forwarding. Application capture in isolated Edge, not an Azure portal screenshot. Original browser/account/identifier fields are masked in the image pixels; no unredacted image is included.

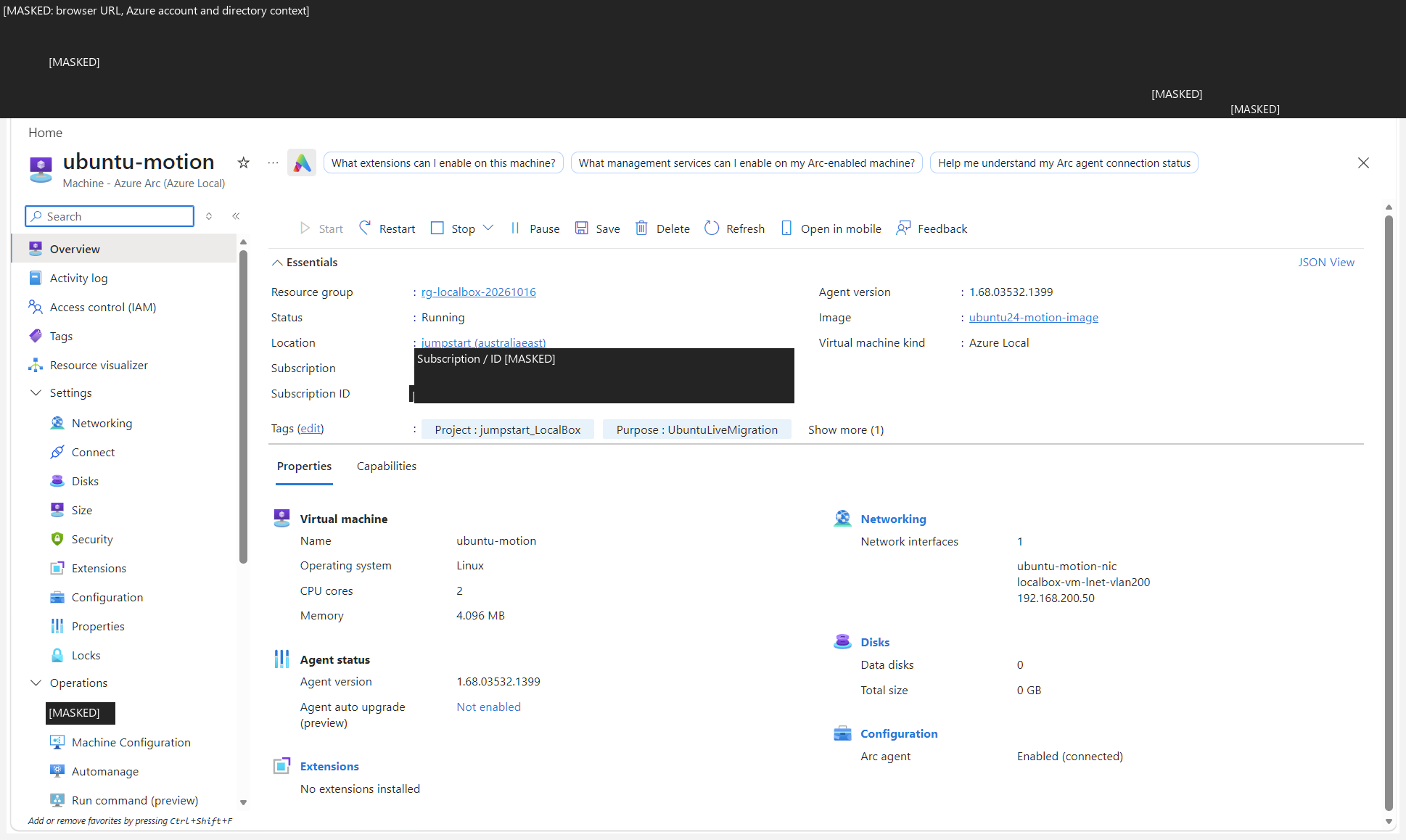

19. Ubuntu VM on Azure Local
Actual portal-managed Ubuntu VM: Running, two vCPUs, 4096 MB, private NIC, and connected guest agent. Original browser/account/identifier fields are masked in the image pixels; no unredacted image is included.
20. Owner during maintenance

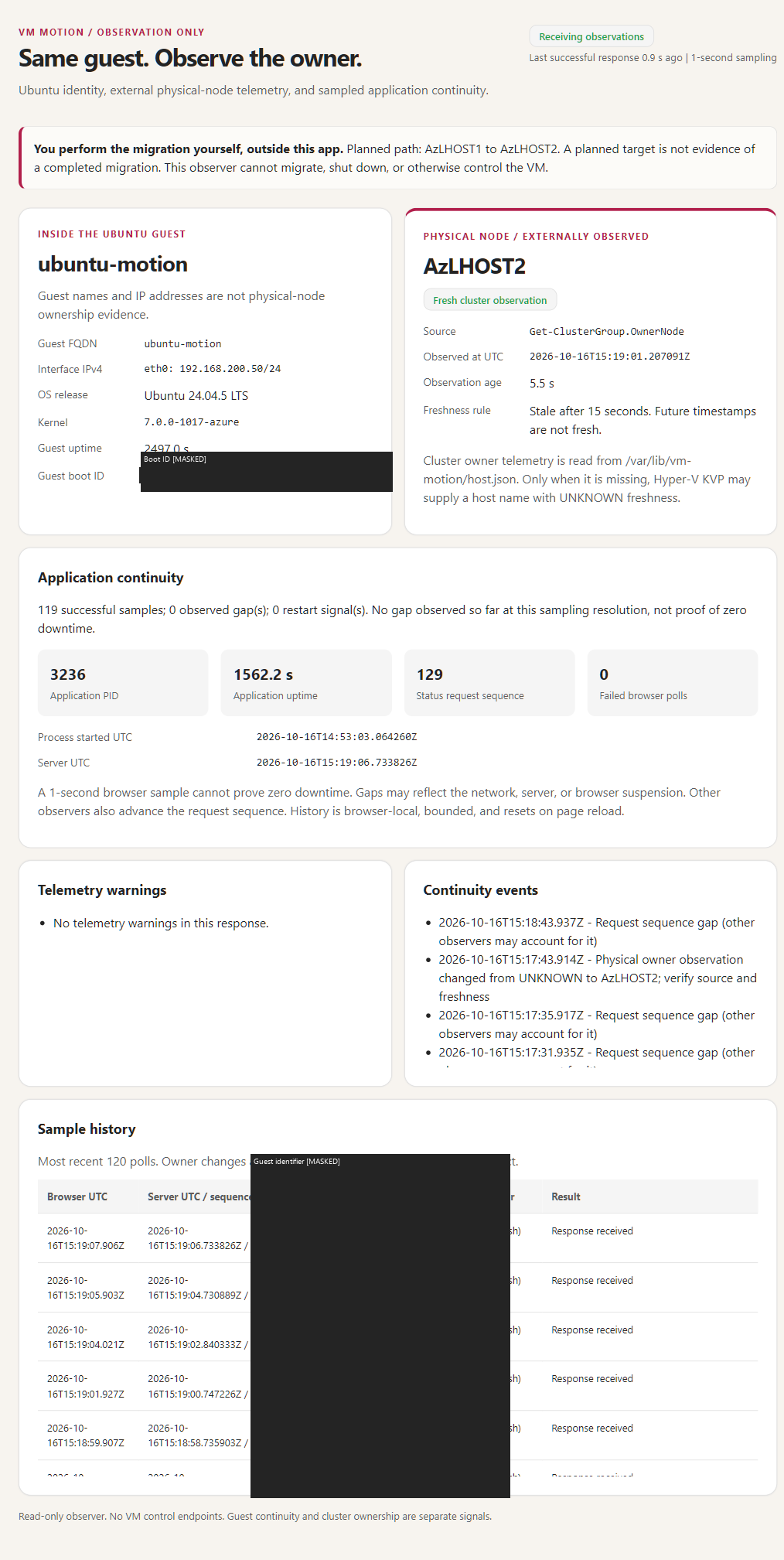

Historical application capture with AzLHOST2 as owner during cluster maintenance. Not evidence of a user-run migration. Original browser/account/identifier fields are masked in the image pixels; no unredacted image is included.

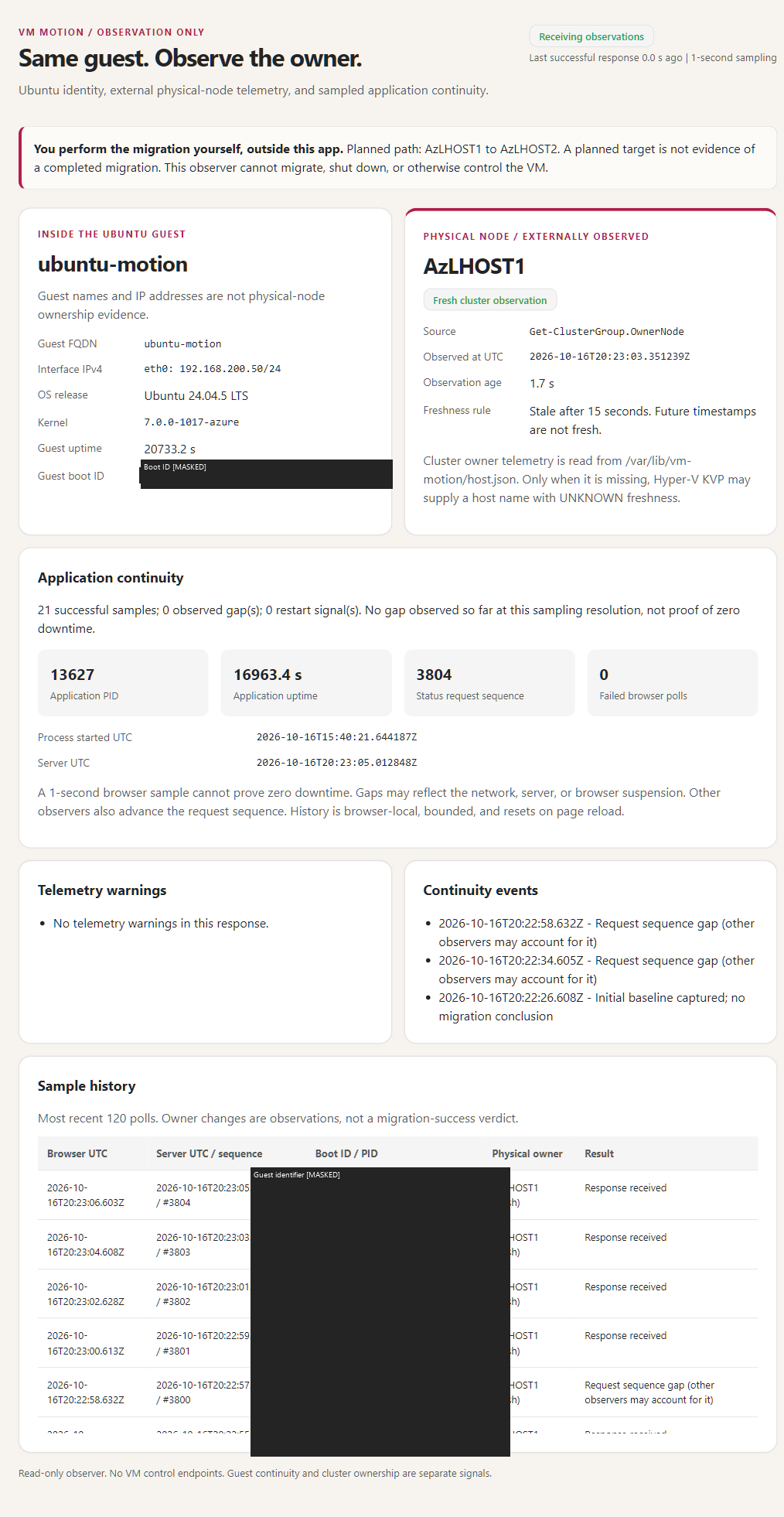

21. Manual-exercise baseline
Actual application showing a fresh AzLHOST1 owner before the manual exercise. Guest identifiers are masked. Original browser/account/identifier fields are masked in the image pixels; no unredacted image is included.

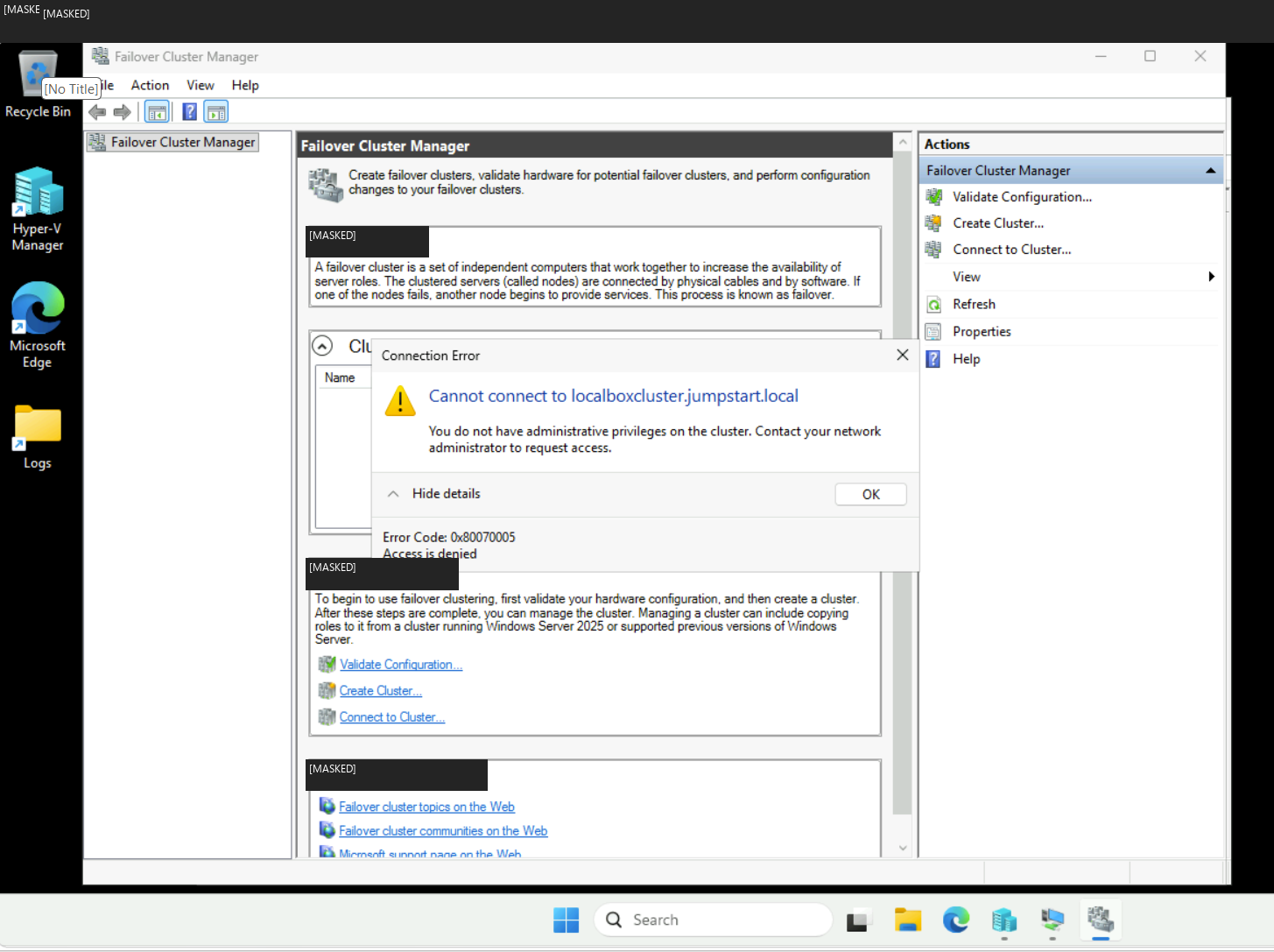

22. Local-user access denied
User-supplied 0x80070005 failure. Bastion connected; the local account did not have the domain cluster identity. Original browser/account/identifier fields are masked in the image pixels; no unredacted image is included.

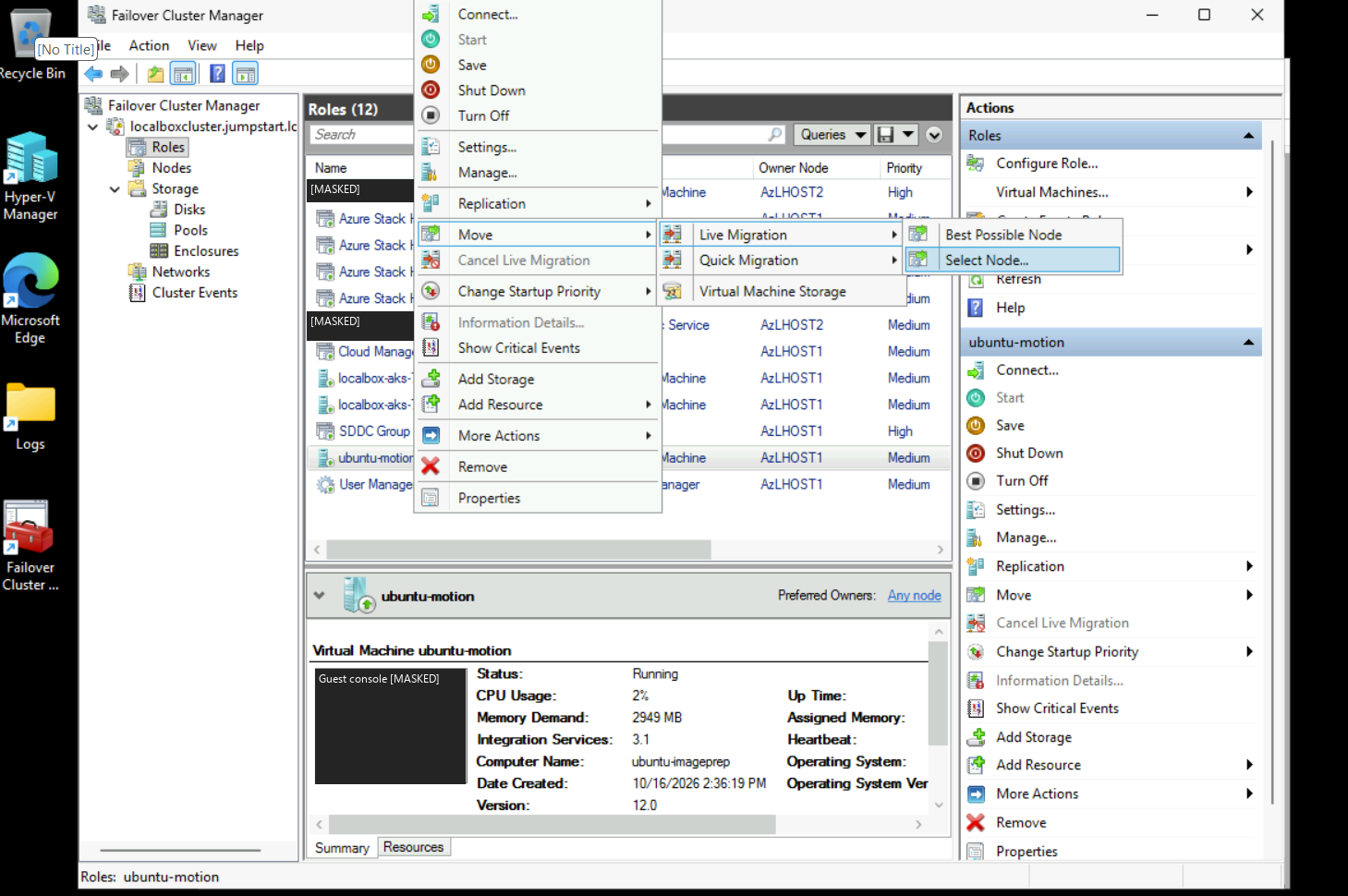

23. Live Migration menu
User-supplied connected cluster console showing ubuntu-motion owned by AzLHOST1 and Move > Live Migration > Select Node. No completed migration is shown. Original browser/account/identifier fields are masked in the image pixels; no unredacted image is included.
